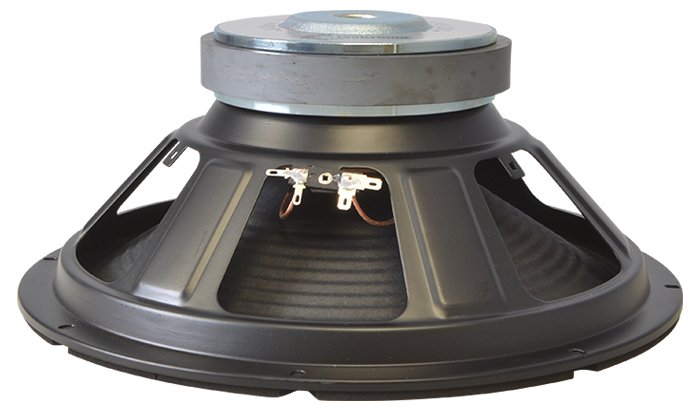

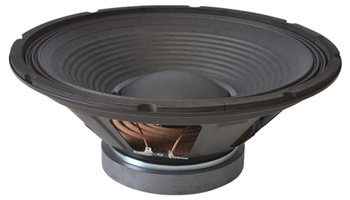

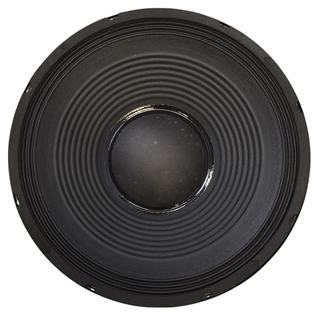

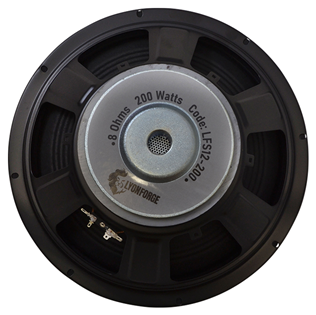

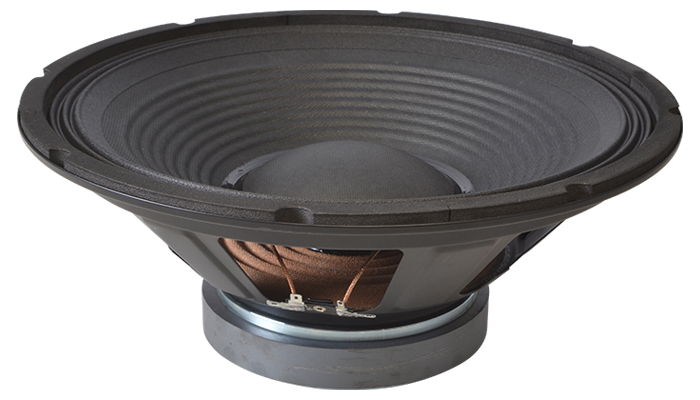

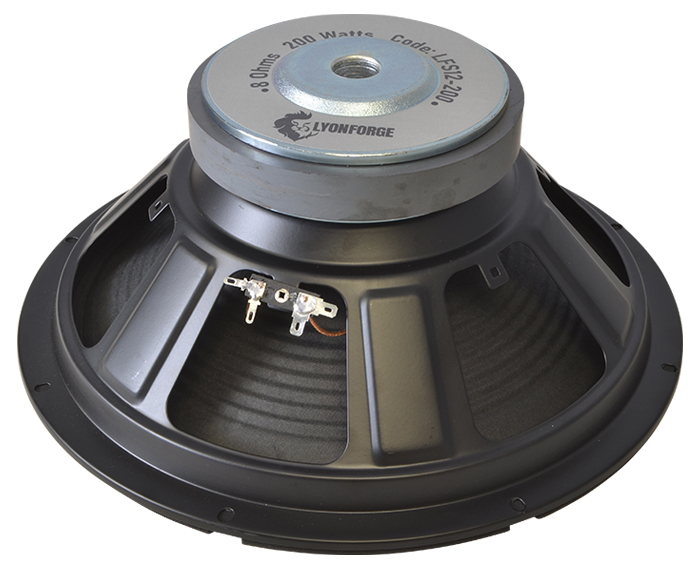

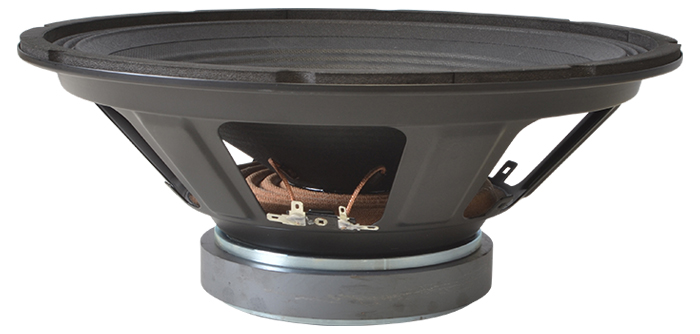

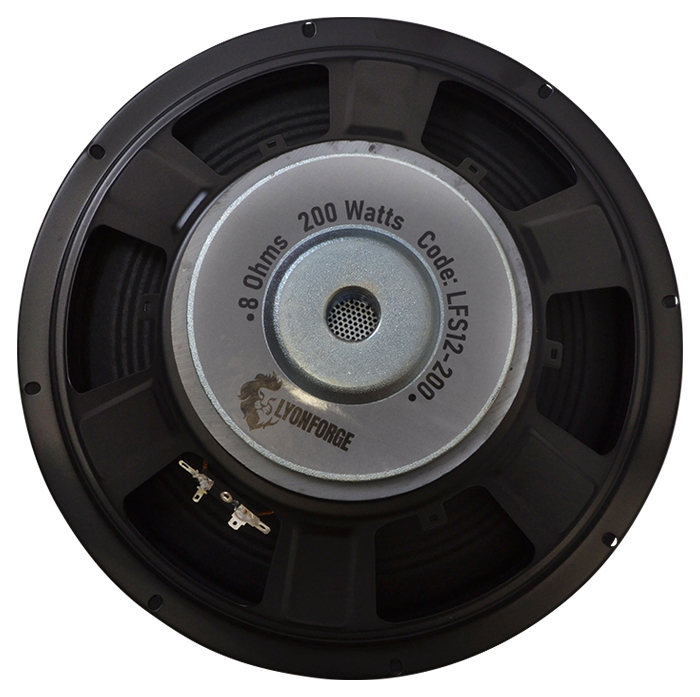

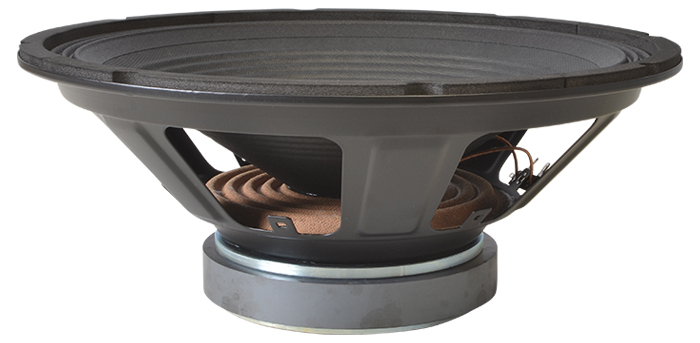

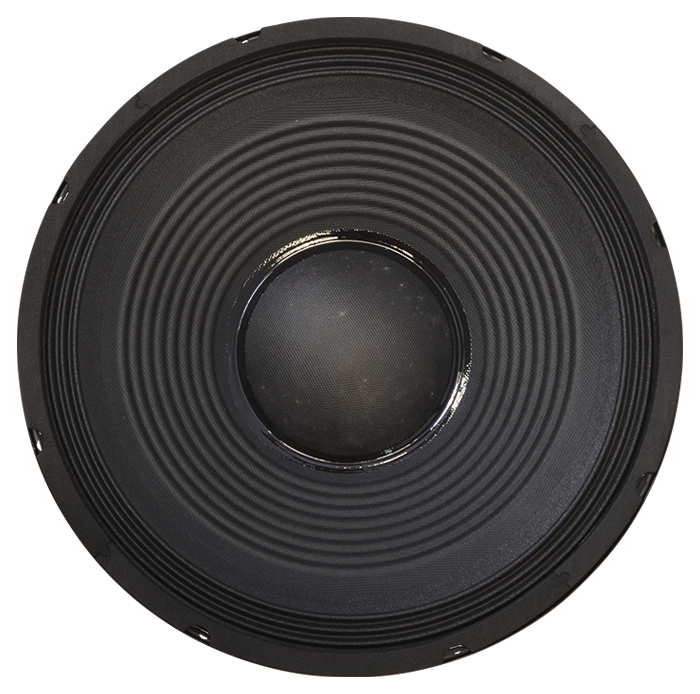

12" Speaker Driver 200 Watt 8 Ohm Bass and Midrange Woofer

Code: LFS12-200
Availability: 12 In Stock
  • 12" Woofer/Full Range Driver
  • For Speaker Repairs
  • New Speaker Projects
  • 200 watts 8 Ohm
£29.95 inc VAT
Add

If you're looking to upgrade your PA system or start a new speaker project, consider the Lyonforge 12" Woofer. It has a power handling capacity of 200 watts and an 8 Ohm impedance, providing strong performance for both repairs and custom builds.
This woofer serves as a full range driver, offering balanced sound across different frequencies. It's suitable for upgrading PA speakers, fixing old cabinets, or building a new speaker system.

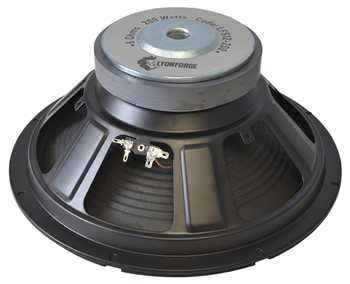

The woofer comes with solder terminals for easy installation and is built to last, ensuring reliable performance for a long time.

Driver Size: 12"
Power: 200W AES
Impedance: 8 Ohm
Frequency Range: 49-1800kHz
Sensitivity: 93.5dB
Bolt Circle Diameter: 300mm
Cut-out Diameter: 282mm
Dimensions: 306 x 128mm
Weight: 2.95Kg

Thiele & Small Parameters
Resonance Frequency (Fs): 49hz
DC Resistance (Re): 6.5 Ohms
Mechanical Factor (Qms): 2.272
Electrical Factor (Qes): 0.801
Total Factor (Qts): 0.592
BL Factor (BL): 11.6T.m
Effective Moving Mass (Mms): 53gr
Compliance (Cms): 192 u M/N
Equivalent Cas Air Load (Vas): 96L
Effective Piston Area (Sd): 59m2
