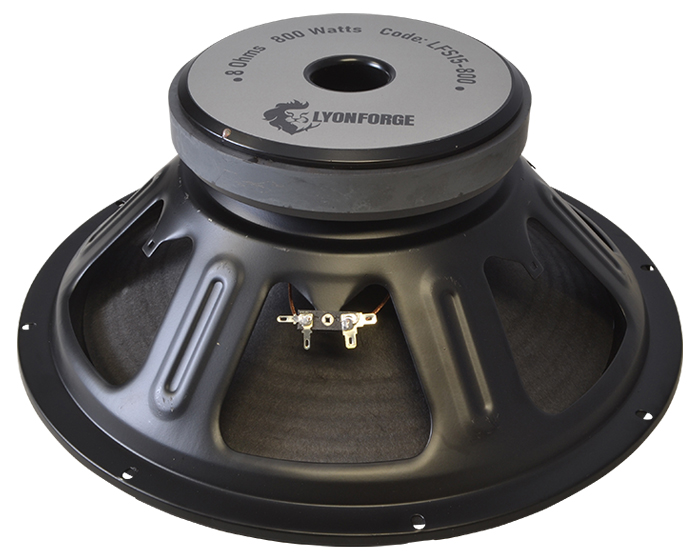

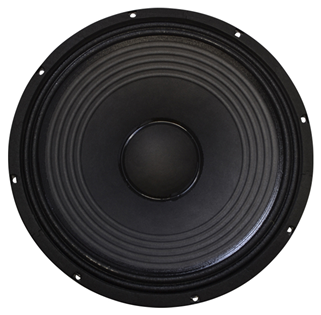

15" Speaker Driver 800 Watt 8 Ohm Bass Woofer

Code: LFS15-800
Availability: 5 In Stock
  • 15" Bass Speaker Driver
  • For Speaker Repairs
  • New Speaker Projects
  • 1000 watts
  • 8 Ohm
£68.95 inc VAT

This Lyonforge Woofer is designed for top performance in both speaker repairs and new projects. It can handle 800 watts of power and has an 8 Ohm impedance, providing deep and powerful bass. It's ideal for bass cabinets and has a frequency response that covers the whole of the low frequency spectrum.
The woofer features a sturdy frame and a large 190mm magnet, making it durable and stable for heavy use in big systems.
Suitable for upgrading existing systems or for new speaker projects, this 15" Lyonforge Woofer is a solid choice. Thiele Small parameters are also provided for advanced speaker design needs.

Driver Size: 15"
Power AES: 400W Watts
Continuous Programme: 800 Watts
Impedance: 8 Ohm
Frequency Range: 53-5100kHz
Sensitivity: 99.2dB
Bolt Circle Diameter: 377mm
Cut-out Diameter: 361mm
Dimensions: 385 x 155mm
Weight: 6.3Kg
Thiele & Small Parameters:
Resonance Frequency (Fs): 53hz
Mechanical Factor (Qms): 1.68
Electrical Factor (Qes): 0.41
Total Factor (Qts): 0.33
BL Factor (BL): 19.3T.m
Effective Moving Mass (Mms): 76.9gr
Compliance (Cms): 116.6 u M/N
Equivalent Cas Air Load (Vas): 148L
Effective Piston Area (Sd): 94m2
