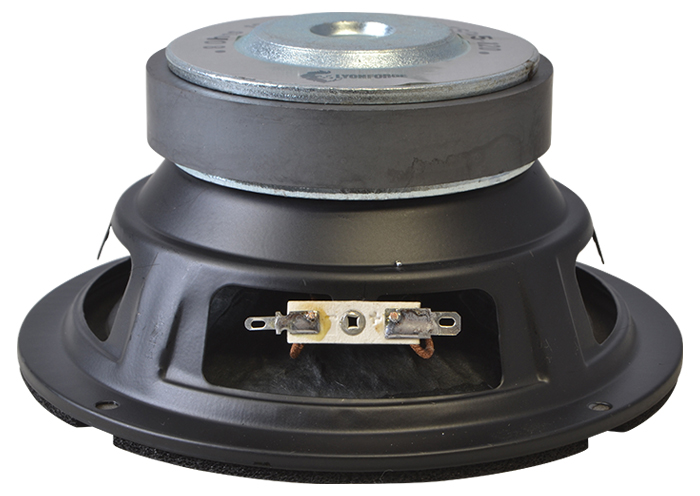

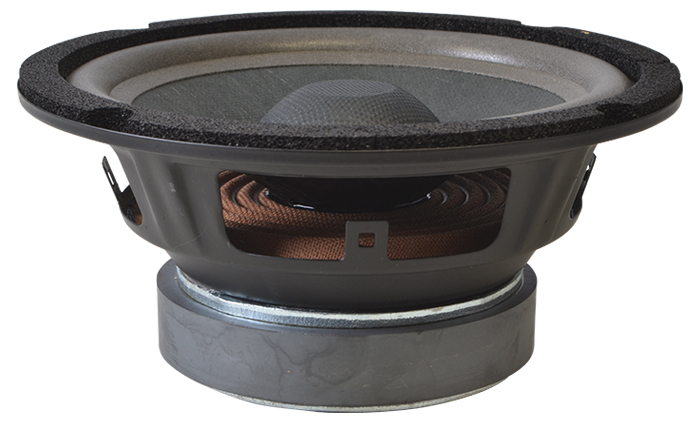

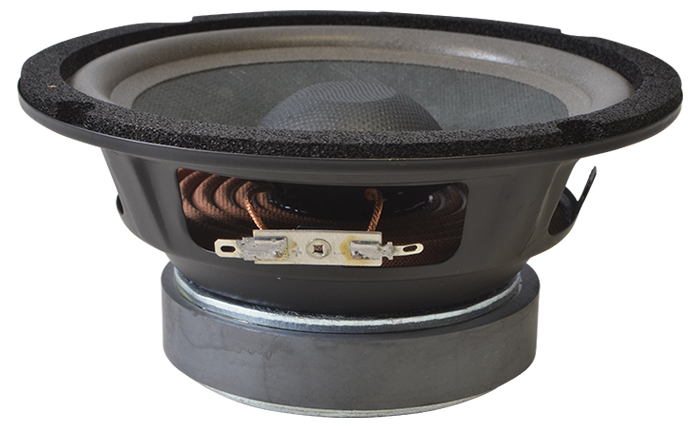

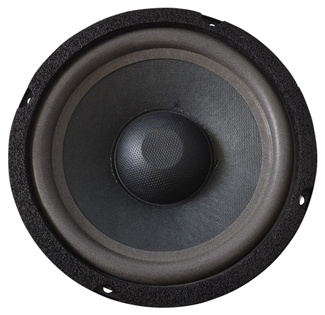

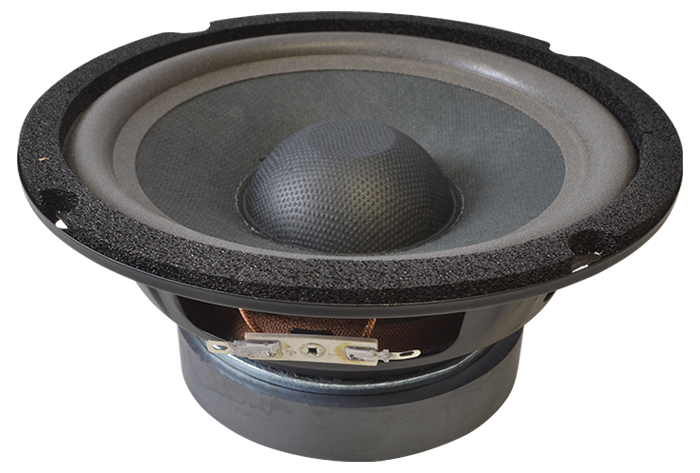

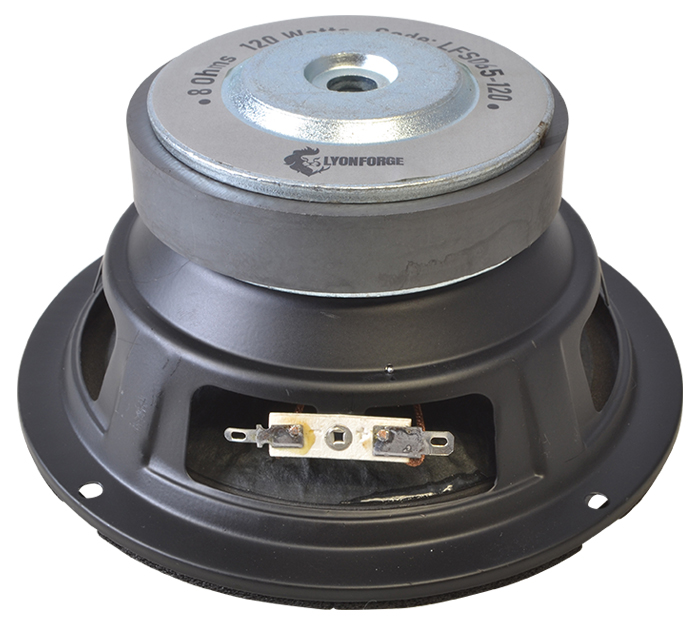

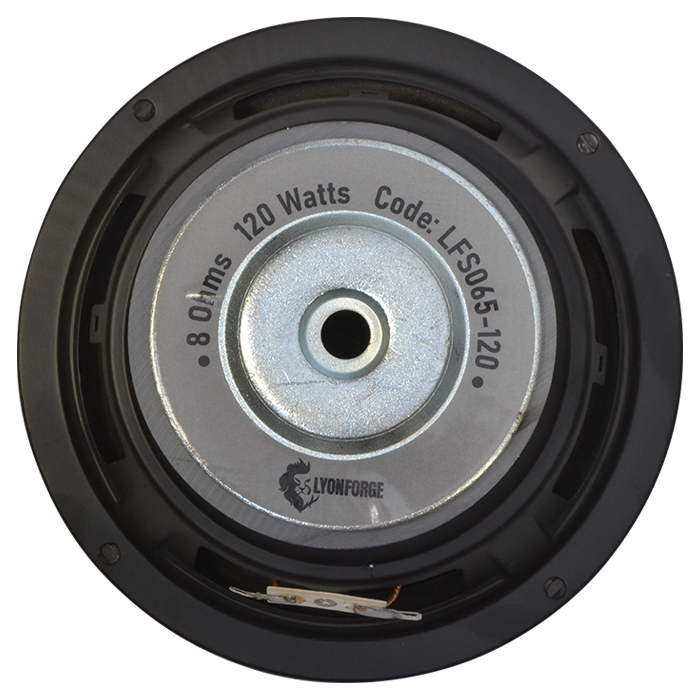

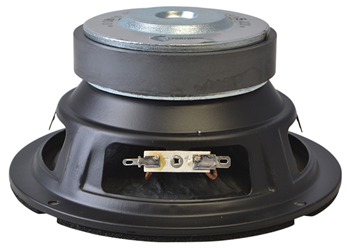

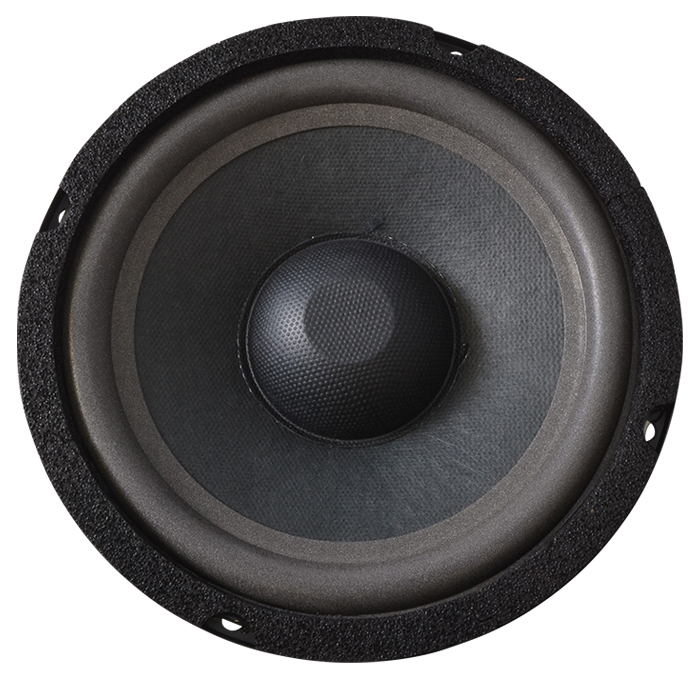

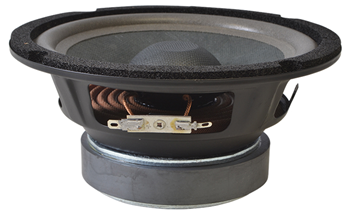

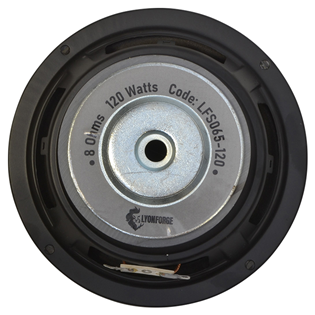

6.5" Speaker Driver 120 Watt 8 Ohm Full Range Chassis Speaker

Code: LFS065-120
Availability: In Stock
  • 6.5" Full Range Driver
  • For Speaker Cabinet Repair
  • New Speaker Projects
  • 120 watts 8 Ohm
£9.95 inc VAT

This 6.5-inch speaker driver is ideal for both repairs and new speaker projects. It can handle up to 120 watts of power, producing clear and strong audio. The driver has an 8 ohm impedance, making it compatible with many systems and offering excellent sound quality. It's suitable for restoring old speakers or building new ones, and works well in monitors and Hi-fi speakers due to its full-range sound.

Driver Size: 6.5"
Power: 120W RMS
Impedance: 8 Ohm
Frequency Range: 75-5500kHz
Sensitivity: 91dB
Bolt Circle Diameter: 158mm
Cut-out Diameter: 144mm
Dimensions: 166 x 80mm
Weight: 1.2Kg

Thiele & Small Parameters
Resonance Frequency (Fs): 75hz
Mechanical Factor (Qms): 2.364
Electrical Factor (Qes): 0.906
Total Factor (Qts): 0.655
BL Factor (BL): 5T.m
Effective Moving Mass (Mms): 9gr
Compliance (Cms): 464 u M/N
Equivalent Cas Air Load (Vas): 18L
Effective Piston Area (Sd): 16m2
